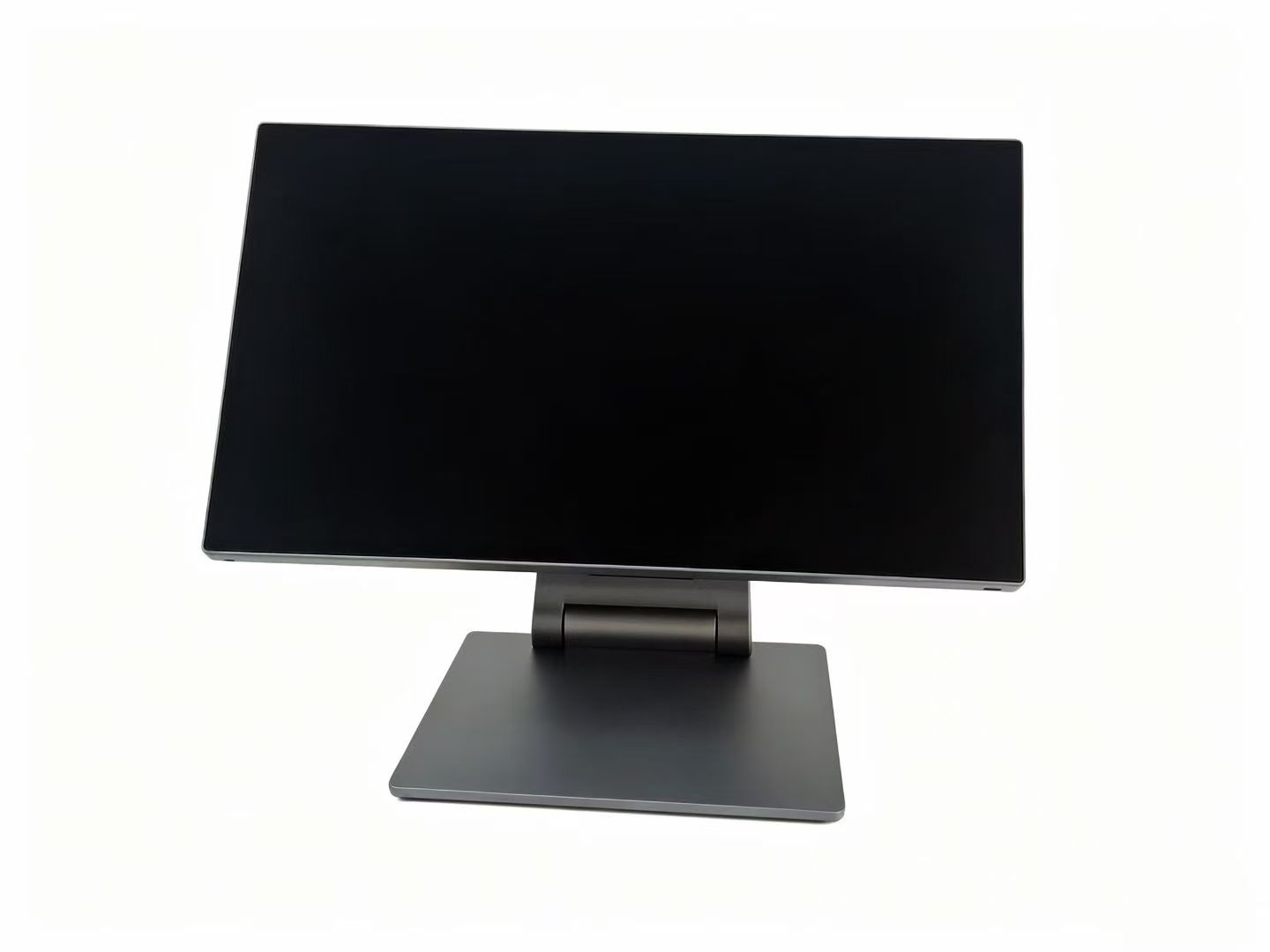

Desktop PCAP Touch Monitor
Compact desktop touchscreen monitor designed for HMI, self-service terminals, commercial equipment and operator workstations.
Technical Specifications
| Specification | Desktop PCAP Touch Monitor Specifications |
|---|---|
| Product Type | Desktop PCAP touch monitor with adjustable stand for connection to an external PC, controller, or embedded computing system |
| Standard Sizes | 10.1", 13.3", 15.6", 18.5", 21.5", 23.8", 27", and 32" |
| Custom Size | 43" project-based configurations are available on request |
| Touch Technology | Projected capacitive touch (PCAP), 10-point multi-touch |
| Display Resolution | FHD standard configuration; 4K resolution is available for selected custom configurations |
| Aspect Ratio | 16:9 |
| Viewing Angle | Wide-viewing-angle and full-viewing-angle panel options are available depending on the selected LCD panel and project requirements |
| Video Inputs | HDMI / VGA / DP / USB-C options; available interface combinations depend on the selected model and hardware configuration |
| Touch Interface | USB touch interface |
| Desktop Stand | Adjustable desktop stand with screen tilt and height adjustment for different operating positions |
| VESA Mounting | Custom VESA mounting patterns are available according to the selected enclosure and project requirements |
| Front Glass | 3 mm tempered cover glass as standard; optional AG or AR surface treatment available |
| Enclosure | Aluminum-alloy enclosure |
| Power Input | 12V DC / 24V DC options depending on the selected screen size and hardware configuration |
| Applications | Industrial HMI workstations, equipment control terminals, operator workstations, self-service systems, kiosks, commercial counters, and POS applications |
| OEM Options | Project-based customization can include display size, resolution, panel viewing angle, PCAP touch configuration, cover glass, AG / AR treatment, video interfaces, enclosure finish, branding, cable configuration, stand design, VESA mounting, and project-specific mechanical requirements |
Rear Interfaces and Adjustable Stand Design

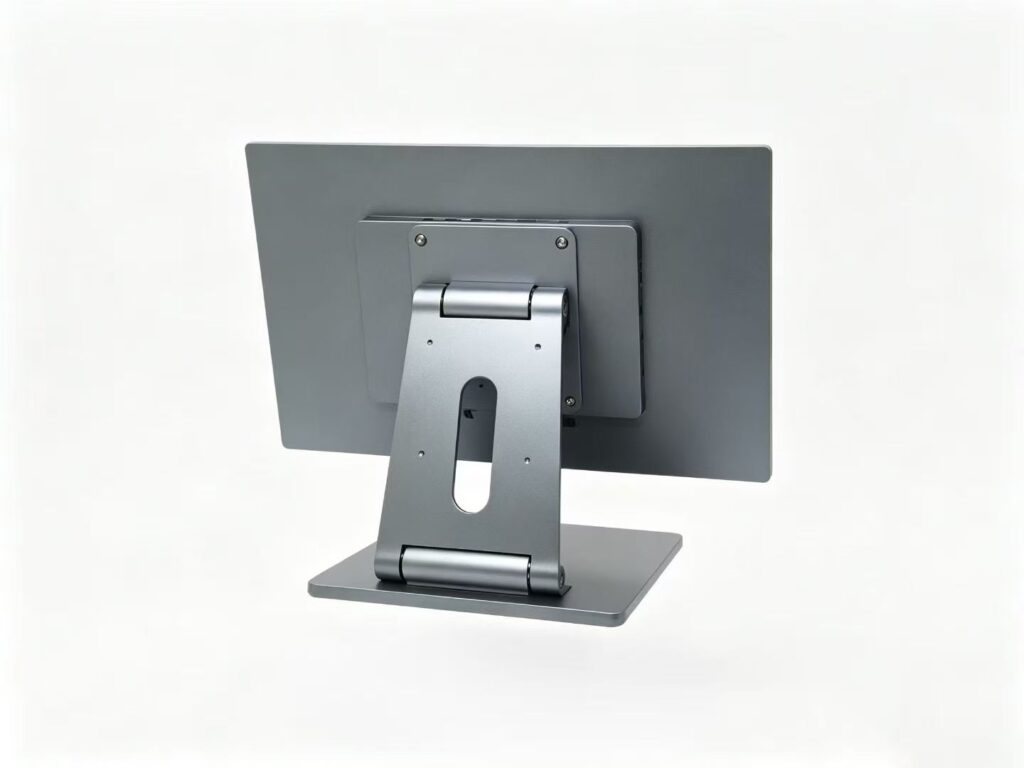

Rear-view examples show the available video and touch interfaces, aluminum-alloy enclosure, and adjustable desktop stand. Interface combinations, connector locations, VESA mounting and stand configuration are confirmed according to the selected monitor size and project requirements.

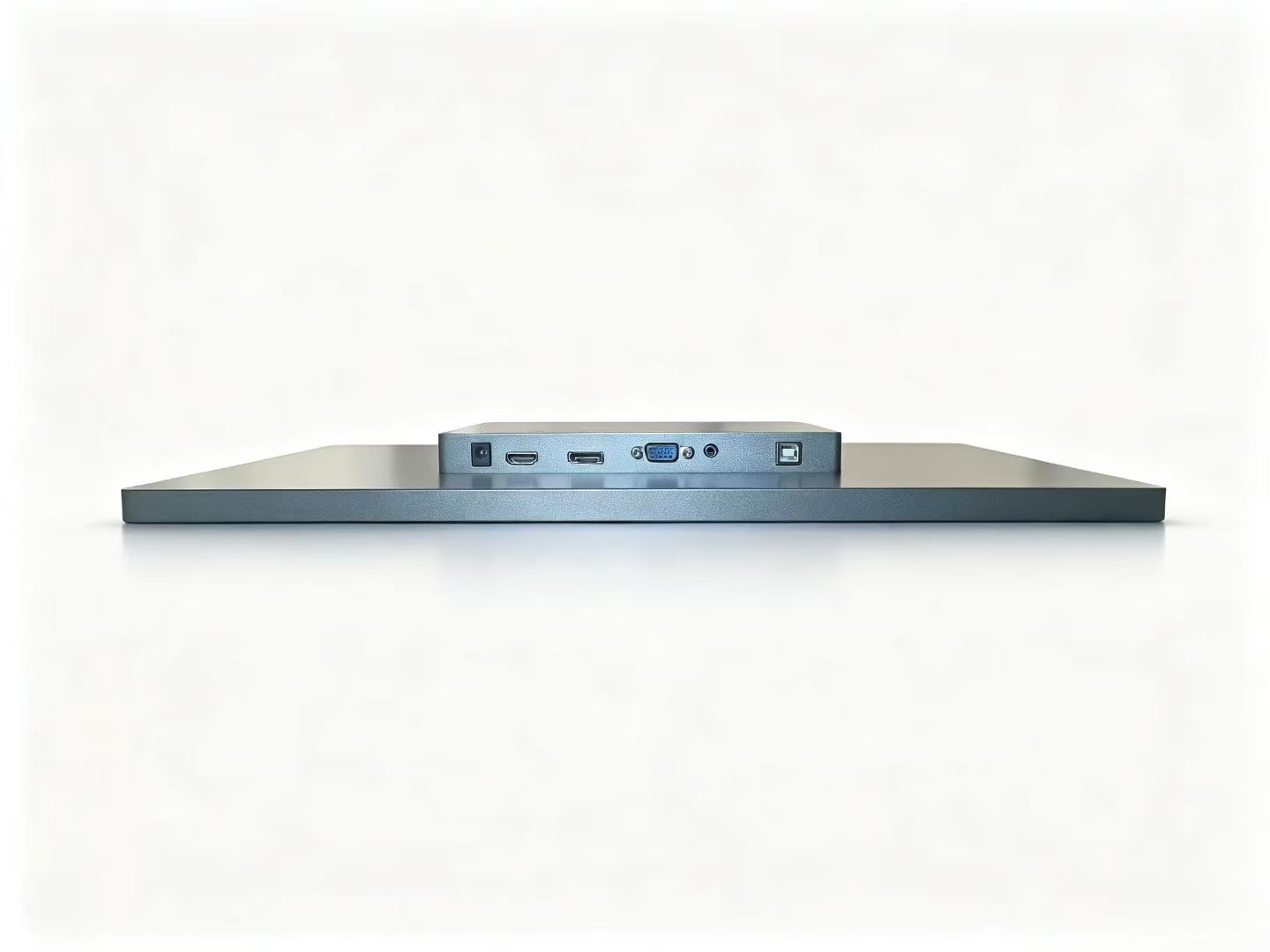

Rear interface options for video, touch and power connections on the Desktop PCAP Touch Monitor.
Key Features of Desktop PCAP Touch Monitors
- 10-point projected capacitive (PCAP) multi-touch
- Standard sizes from 10.1″ to 32″, with 43″ project-based configurations available
- FHD standard configuration, with 4K available for selected custom projects
- HDMI, VGA, DP and USB-C video interface options
- USB touch interface
- Adjustable desktop stand with screen tilt and height adjustment
- 3 mm tempered cover glass as standard, with optional AG or AR treatment
- Aluminum-alloy enclosure
- Custom VESA mounting and OEM configuration options
Applications
- HMI workstations
- Operator workstations
- Equipment control terminals
- Self-service terminals
- Kiosks
- Commercial counters
- POS systems
- Industrial and commercial desktop applications
OEM/ODM Hardware Customization Options
BaseIPC supports project-based customization for desktop PCAP touch monitors according to display, interface, mounting and application requirements.
- Display sizes from 10.1″ to 32″, with 43″ project-based configurations
- FHD standard resolution and selected 4K custom configurations
- Wide-viewing-angle or full-viewing-angle LCD panel options
- 3 mm tempered cover glass with optional AG / AR treatment
- HDMI / VGA / DP / USB-C video interface options
- USB touch interface
- Adjustable stand configuration
- Custom VESA mounting
- Aluminum-alloy enclosure finish
- Logo and branding customization
- Cable layout and project-specific hardware configuration
Hardware Engineering & Manufacturing Support
BaseIPC supports desktop touch monitor assembly, PCAP touch integration, tempered cover glass, aluminum-alloy enclosure fabrication, hardware interface configuration, adjustable stand integration, and project-specific hardware customization through our manufacturing capabilities in Guangzhou, China.
We support sample validation, pilot runs, and small-to-medium batch production for desktop PCAP touch monitor projects.
Related Industrial Computing & Touch Hardware Solutions
Explore related touch display and industrial computing solutions for OEM equipment and system integration projects.
Industrial Touch Monitors
Industrial Panel PCs
OEM/ODM Hardware Customization
Tell us your preferred screen size, application and estimated quantity. Include your required video interfaces, stand or VESA requirements, and any OEM customization needs. We can recommend a suitable Desktop PCAP Touch Monitor configuration for your project.
