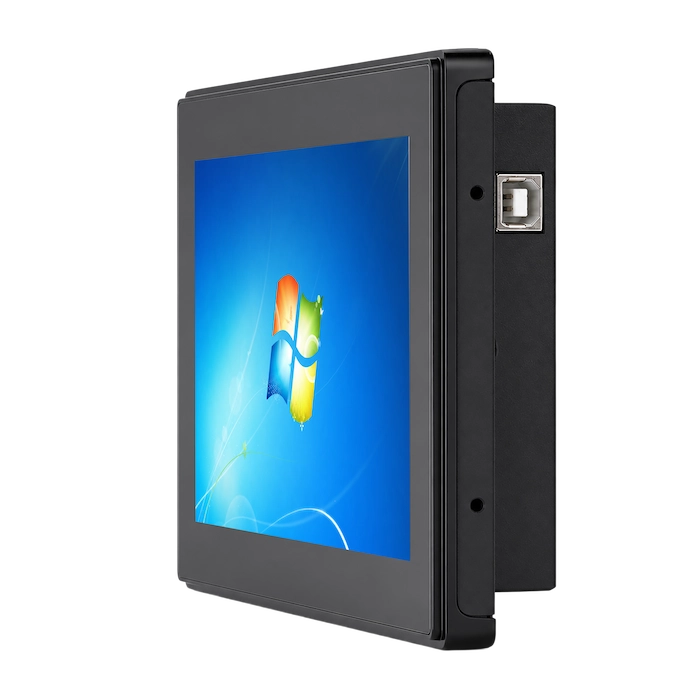

10.1″–32″ Open-Frame PCAP Touch Monitors for OEM Equipment
BaseIPC supplies open-frame PCAP touch monitors for kiosks, control panels, and embedded OEM equipment. Standard sizes include 10.1″, 13.3″, 15.6″, 18.5″, 21.5″, 23.8″, 27″, and 32″, with 43″ project-based configurations available for evaluation. Display, touch, and mechanical options are confirmed for each project.
An external computer or controller is required to run the application.
Technical Specifications
| Specification | Open-Frame Touch Monitor Hardware Options |
|---|---|
| Product Type | Display-only open-frame touch monitor for integration into kiosks, cabinets, control panels, and OEM equipment; connects to an external PC, controller, or media player |
| Standard Sizes | 10.1", 13.3", 15.6", 18.5", 21.5", 23.8", 27", and 32" standard options; 43" project-based configurations can be evaluated |
| Touch Technology | Projected capacitive touch with 10-point multi-touch; resistive touch optional for selected projects |
| Touch Performance | Glove operation and touch-through cover glass options can be evaluated according to the selected touch controller and glass configuration |
| Display Resolution | HD, FHD, and 4K display options based on screen size, LCD panel availability, and project requirements |
| Video Input | HDMI, VGA, and DisplayPort; DVI and other video input options available for selected projects |
| Touch Interface | USB touch interface; RS232 touch interface optional for selected projects |
| Brightness Options | 300–1000 nits options for indoor, kiosk, industrial, or high-ambient-light applications; up to 1500 nits can be evaluated for selected projects |
| Power Input | 12V or 24V DC input options; power connector and external adapter configuration confirmed according to the selected model |
| Bonding Options | Air bonding or optical bonding options based on visibility, durability, and operating-environment requirements |
| Mounting Method | Rear mount, VESA mount, panel mount, adjustable side brackets, or project-specific embedded mounting structures |
| Front Glass | Custom cover glass, glass thickness, edge printing, logo printing, AG / AR / AF surface treatments, anti-UV options, and strengthened glass configurations |
| Front Protection | IP65-rated front protection available for selected configurations; final protection level depends on the front glass, sealing structure, mounting method, and customer equipment enclosure |
| Operating Environment | Standard and wide-temperature configurations available; final operating and storage temperature ranges are confirmed according to the selected LCD panel and hardware configuration |
| System Compatibility | Touch compatibility with Windows, Linux, or Android can be evaluated according to the selected touch controller and driver requirements |
| Applications | Self-service kiosks, photo booths, HMI terminals, automation equipment, control cabinets, embedded display systems, and OEM equipment panels |
| OEM Hardware Options | Customization options include display size, brightness, touch technology, cover glass, bonding method, video and touch interfaces, power input, cable layout, mounting brackets, rear housing, surface finish, and branding. Application software and system control logic are provided by the customer or its system integrator. |

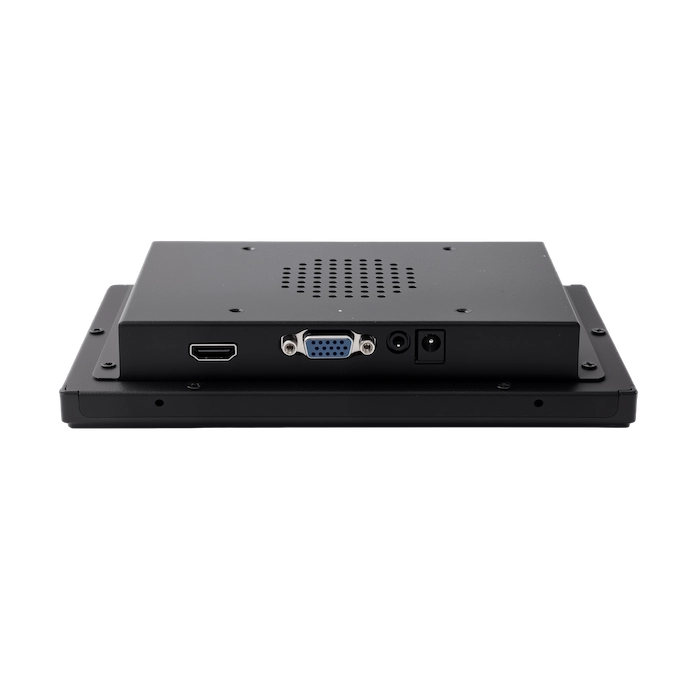

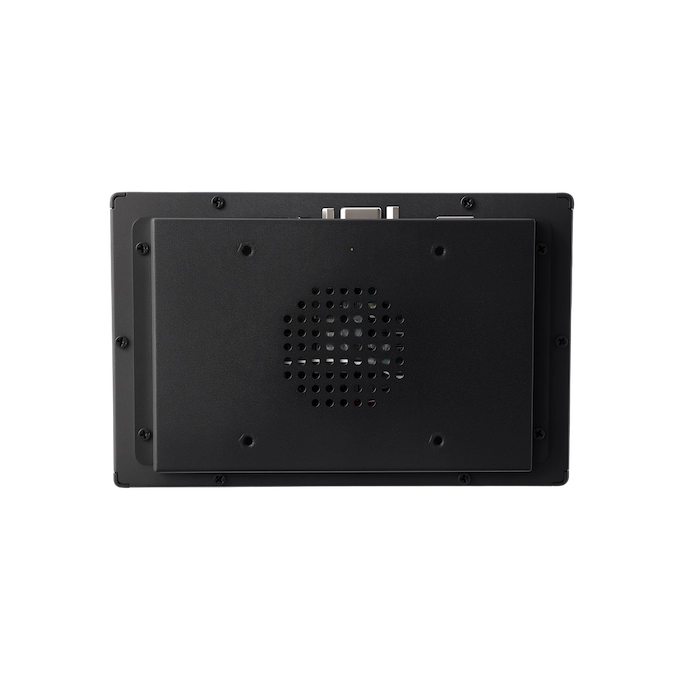

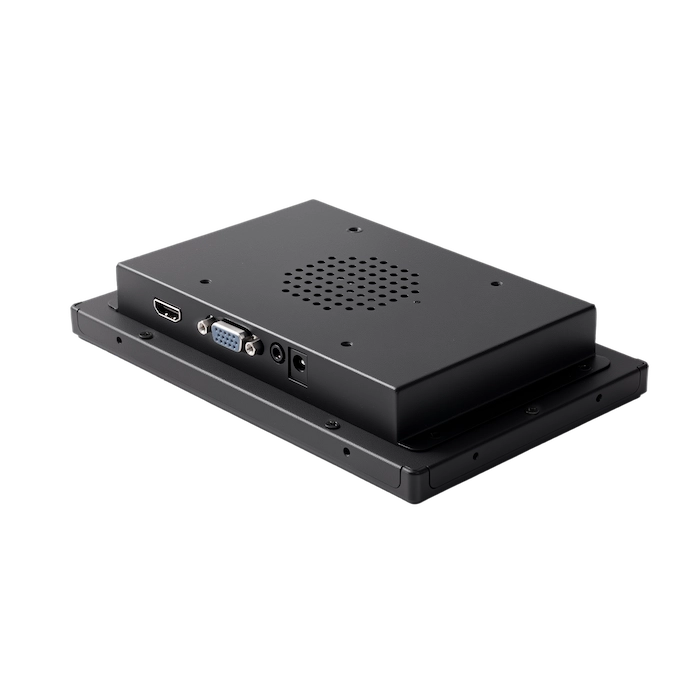

Rear Interface and OEM Mounting Options
Rear-view examples show interface placement, housing structure and mounting details. Final connector positions, cable clearance and mounting dimensions are confirmed for the selected configuration.
Key Features of Open-Frame PCAP Touch Monitors
- Open-frame construction for integration into OEM equipment.
- PCAP touchscreen connected to an external computer or controller.
- Cover glass, rear housing and mounting structures evaluated for equipment integration.
Applications
- Self-service kiosks
- HMI terminals and operator interfaces
- Industrial automation equipment
- Control cabinets and operator panels
- Industrial machinery
- Embedded industrial display systems
- OEM equipment control panels
OEM/ODM Hardware Customization Options
BaseIPC evaluates hardware customization against your equipment design and application requirements. Configuration availability and mechanical compatibility are confirmed for each project.
- Custom display size and display module configuration for OEM equipment integration
- PCAP touch glass, cover glass thickness, edge printing, and logo printing
- Brightness, resolution, and viewing-angle options based on application environment
- HDMI, VGA, or DP video input with USB or optional RS232 touch interface
- Open-frame, panel-mount, rear-bracket, or project-specific embedded mounting structures
- Cable layout, rear housing, surface finish, and branding options
- Sample validation, pilot runs, and small-to-medium batch OEM production
Hardware Engineering & Manufacturing Support
BaseIPC supports industrial display assembly, PCAP touch integration, custom front glass, metal housing fabrication, hardware interface configuration, and project-specific mechanical customization through our manufacturing capabilities in Guangzhou, China.
We support sample validation, pilot runs, and small-to-medium batch production for open-frame PCAP touch monitor projects.
Related Industrial Computing & Touch Hardware Solutions
Explore related industrial computing and touch hardware solutions for OEM equipment projects.
Industrial Touch Monitors
Industrial Panel PCs
OEM/ODM Hardware Customization
Request a Hardware Quote
Tell us your preferred screen size and application. Include video input requirements, mounting drawings or estimated quantity if available. We can review a suitable touch monitor configuration for your equipment.
